V3 VemsDisplay calibration
Analog Input Calibration

Subpage of Inputs menu


VemsDisplay (>2014-03-06) displays calibrated input channels.

Choose types to channels on Inputs/Analog Input Calibration Dialogs.
Channels can be configured manually or with Tools/Analog Input Calibration Wizard.

Using Analog Input Calibration Wizard

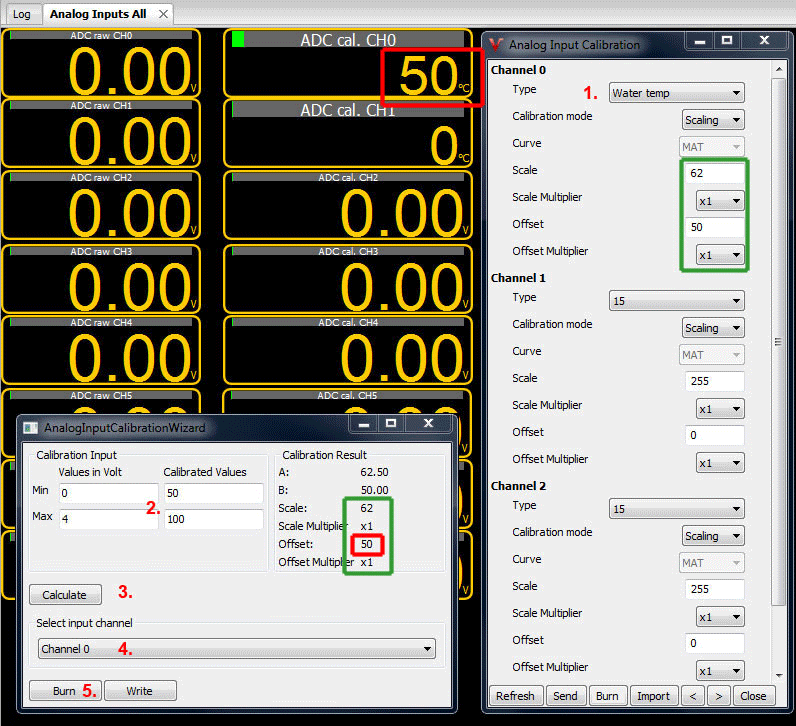

Set the Values in Volt and Calibrated Values in Tools/Analog Input Calibration Wizard window in VemsTune. Min / Max can be any values on the linear slope (not just min/max).
The calculated values will be set to the selected channel in Analog Input Calibration window.
These calibrated values will be stored on ECU, and shown on VemsDisplay digital gauges.

analog input calibration with wizard
Analog input calibration with wizard

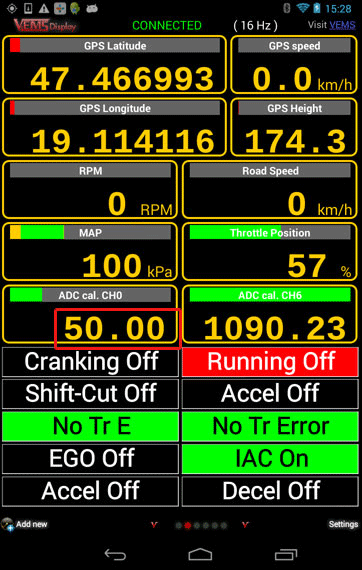

VemsDisplay calibrated inputs
VemsDisplay calibrated inputs

See also Analog Input Calibration
