Connectors

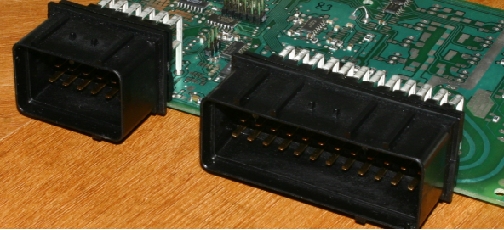

- Automotive grade AMP Econoseal III: The Econoseal III connections are industrial grade connectors where the Genboard v3 ECU connects to the rest of the vehicle. They serve to limit vibrations and contain seals to keep out fluids like oil and water in almost all cases.
- Tyco WB02 Connector: This connector provides an interface between Genboard and the wideband oxygen sensor. Tyco connectors also contain seals to resist moisture and fluids.

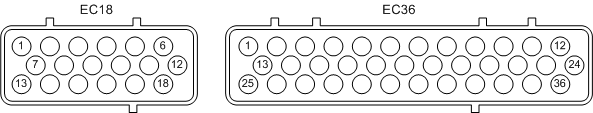

| EC36 Pin | Signal Name | Max Load |
|---|---|---|
| EC36-1 | Throttle Position Sensor signal | |
| EC36-2 | Intake Air Temperature signal | |
| EC36-3 | Fast Idle Solenoid | 350mA |
| EC36-4 | Drive_08 (misc output) | 350mA |
| EC36-5 | High-Power Ground (GND5) | |
| EC36-6 | Injector 7 | 10A |
| EC36-7 | Injector 1 | 10A |
| EC36-8 | Injector 3 | 10A |
| EC36-9 | Injector 5 | 10A |
| EC36-10 | Coil #7 | 7A |
| EC36-11 | Coil #4 | 7A |
| EC36-12 | Coil #5 | 7A |
| EC36-13 | Secondary Trigger | |
| EC36-14 | Coolant Temperature signal | |
| EC36-15 | Fuel Pump relay | 350mA |
| EC36-16 | Drive_09 (misc output) | 350mA |
| EC36-17 | Injector 8 | 10A |
| EC36-18 | Injector 6 | 10A |
| EC36-19 | Injector 2 | 10A |
| EC36-20 | Injector 4 | 10A |
| EC36-21 | High-Power Ground (GND5) | |
| EC36-22 | Unassigned | |
| EC36-23 | Flyback Rail | |
| EC36-24 | Coil #6 | 7A |
| EC36-25 | Vbatt (Switched with ignition - hot in start and on positions) | |
| EC36-26 | Ground (ECU and signal GND, eg. VR-, CLT, IAT) | |
| EC36-27 | Primary Trigger | |
| EC36-28 | +5V (to sensors) | |
| EC36-29 | ||
| EC36-30 | Drive_11 (misc output) | 350mA |
| EC36-31 | Drive_10 (misc output) | 350mA |
| EC36-32 | High-Power Ground (GND5) | |
| EC36-33 | Coil #1 | 7A |
| EC36-34 | Coil #2 | 7A |
| EC36-35 | Coil #0 | 7A |
| EC36-36 | Coil #3 | 7A |
Table 3.3. EC36 connector pinout
| EC18 Pin | Signal Name | Max Load |
|---|---|---|
| EC18-1 | Wideband Oxygen #2 Nernst Cell | |
| EC18-2 | Exhaust backpressure | |
| EC18-3 | Fuel pressure (often used for MAP signal) | |
| EC18-4 | Stepper motor channel A | 1A |
| EC18-5 | Stepper motor channel C | 1A |
| EC18-6 | Drive_B (misc high current output) | 7A |
| EC18-7 | Wideband Oxygen Pump - | |
| EC18-8 | Wideband Oxygen #2 Pump + | |
| EC18-9 | Wideband Oxygen #1 Pump + | |
| EC18-10 | Stepper motor channel B | 1A |
| EC18-11 | Stepper motor channel D | 1A |
| EC18-12 | Drive_A (misc high current output) | 7A |
| EC18-13 | Wideband Oxygen #1 Nernst Cell | |
| EC18-14 | RS232 communication | |
| EC18-15 | RS232 communication | |
| EC18-16 | Dallas 1-wire bus | |
| EC18-17 | Wideband Oxygen #2 Heater - | |
| EC18-18 | Wideband Oxygen #1 Heater - |
Table 3.4. EC18 connector pinout
| Econoseal Pin | DB9 Pin | Header Pin | Signal Name |
|---|---|---|---|
| EC18 Pin 14 | DB9 Pin 3 | SV2 Pin 1 | |
| EC18 Pin 15 | DB9 Pin 2 | SV2 Pin 2 | |
| EC36 Pin 25 | DB9 Pin 5 | SV2 Pin 3 | Ground |
Table 3.5. RS232 Communications Header Pinout
| DB9 Pin | Header Pin | LCD Pin | Signal Name |
|---|---|---|---|
| DB9 Pin 5 | 2 | LCD Pin 1 | Ground |
| DB9 Pin 1 | 10 | LCD Pin 2 | Positive Voltage Supply |
| DB9 Pin 9 | 1 | LCD Pin 4 | RS |
| DB9 Pin 6 | 7 | LCD Pin 5 | R/W |
| DB9 Pin 2 | 8 | LCD Pin 6 | Enable |
| DB9 Pin 3 | 6 | LCD Pin 11 | Data bit 4 |
| DB9 Pin 7 | 5 | LCD Pin 12 | Data bit 5 |
| DB9 Pin 4 | 4 | LCD Pin 13 | Data bit 6 |
| DB9 Pin 8 | 3 | LCD Pin 14 | Data bit 7 |
Table 3.6. LCD Header (JP_LCD) Pinout
| Amplifier Pin | EGT Pin | Signal Name |
|---|---|---|
| JP16 Pin 1 | Positive (Green) | EGT #1 Positive |
| JP16 Pin 3 | Negative (White) | EGT #1 Negative |
| JP16 Pin 2 | Positive (Green) | EGT #2 Positive |
| JP16 Pin 4 | Negative (White) | EGT #2 Negative |
Table 3.7. EGT (JP16) Header Pinout
| Tyco Pin | EC Pin | Signal Name |
|---|---|---|
| Pin 1 | EC18 Pin 13 | Nernst Cell Signal |
| Pin 3 | +12 V DC | Positive voltage supply |
| Pin 4 | EC18 Pin 18 | Heater |
| Pin 5 | EC18 Pin 7 | Pump - |
| Pin 6 | EC18 Pin 9 | Pump + |
Table 3.8. Tyco WB02 Connector Pinout
| Header Pin | PS2 (Mini DIN6) Pin | AT DIN5 Pin | Function |
|---|---|---|---|
| 1 | 4 | 5 | VCC |
| 2 | 3 | 4 | GND |
| 3 | 1 | 2 | Data |
| 4 | 5 | 1 | Clock |
Table 3.9. PS2 Keyboard (JP_PS1) Header Pinout
