V3 transbrakecreep

Subpage of Motorsport menu

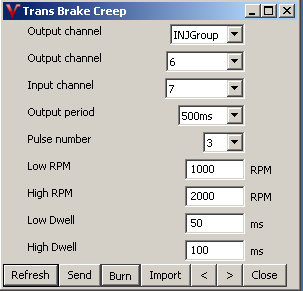

Trans Brake Creep


Configurating

  • Output channel: Channel to activate
  • Input channel: Button input selector
  • Output period: Period time for output pulses
  • Pulse number: Maximum number of pulses send
  • Low Rpm: Lower RPM value for dwell interpolation
  • High Rpm: Higher RPM value for dwell interpolation
  • Low Dwell: Dwell value at Low RPM
  • High Dwell: Dwell value at High RPM

Trans Brake Creep Description:
  • Makes specified number of pulses on the specified output while pushing the button.
  • Stop pulsetrain when button released or the specied number sent.
  • Dwell time of the pulses interpolated between Low Dwell and High Dwell for configurable Low Rpm and High Rpm.
