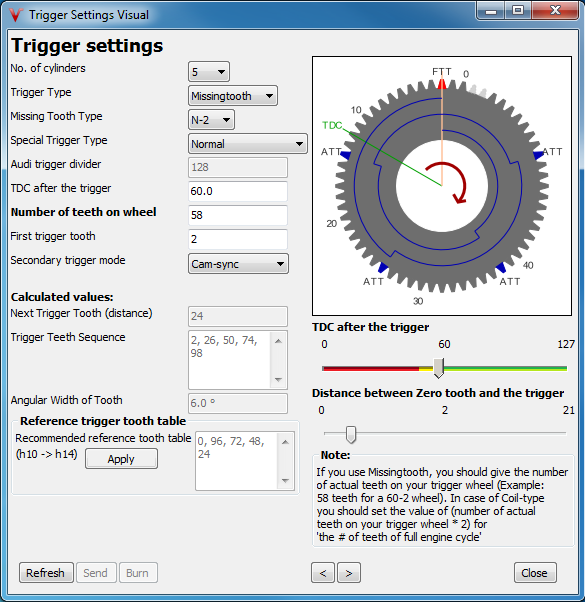

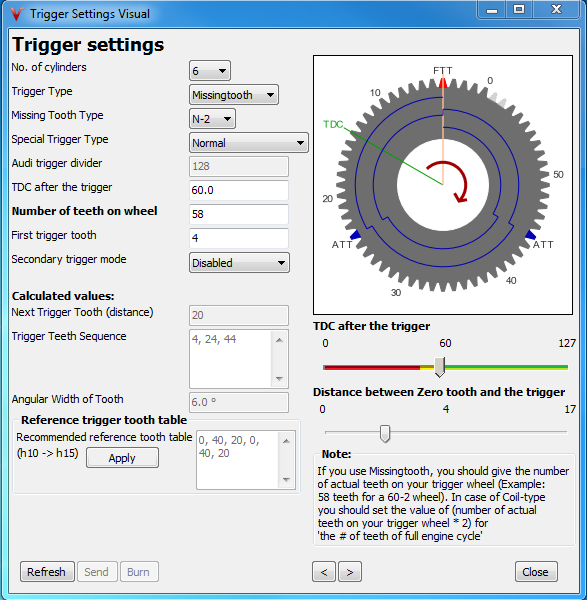

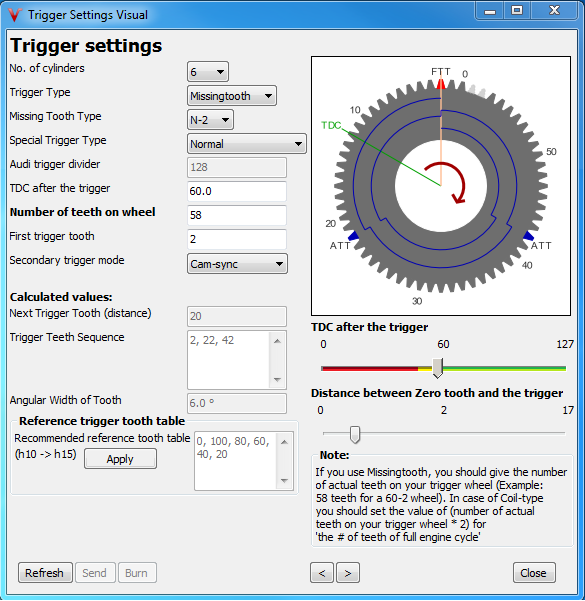

Primary trigger setting visual is ment to streamline the trigger setting setup with the automatic calculation of several configuration values based on the relatively short list of required manual entries. Secondly it provides a visual representation of the trigger wheel with the aim of easing visual trigger setup verification.

Currently it supports most Coiltype and Missing-tooth (N-1/2) trigger wheels.

The Next trigger tooth, Angular Width of Tooth and Reference trigger tooth table are calculated automatically.

TDC after the trigger
Configure the angle between the first trigger tooth and TDC of the following cylinder. The recommened range is 60-80 degrees

Distance between zero tooth and the trigger
Configure the distance in teeth between the zero tooth (first tooth after the missing tooth) and trigger tooth

Legend:

• TDC (geen line): Top Dead Center position
• FTT (red tooth): First Trigger tooth
• ATT (blue tooth): Another trigger tooth
• Blue arc: Shows the triggers sequence for one full engine cam cycle (720 crank deg)
• Brown arrow: Shows the direction of engine rotation

See also: Primary trigger settings for more details
