ECU log settings

After enabling ECU internal logging, log recording will start every time the engine is started.

Logs can be downloaded from Tools / SD Card Log / Search SD files . All logs can be erased from the same menu

A new file is created for every engine start. Appears in the Overview window (ordered by time)

ECU Logger dialog settings:

• ECU Logger enabled : enable or disable SD logging function. Enabling SD log disables Knock sensing.
• RT logging condition :
  • SD logging can be enabled by user defined condition (eg. during "boost").
  • SD logging active when function active.
  • Possible enable condition: Misc outputs, WOT actuator, or Enable after first engine start (default option).
• Stop condition afterlogging:
  • In conditional logging, logging stops after specified time, after the logging condition no longer holds.
• ECU Log uses Byte stuffed format (experimental, NOT recommended):
  • It is a new format: VemsTune support since 2011-02-17.
  • Benefits: can store more type of data on SD card (Datalog, GPS, Triggerlog, related config).
  • Minor disadvantage: displayed time in the "Search SD files" (estimated from file length) might be slightly longer than real. After download the log length is precisely known, the log has good timestamps.
• Automatic GPS Log on main serial port: Enables GPS log to SD card on the main serial (ECU configuration port ), for more details see: GPS log section.
• GPS Log Baud rate: set GPS baud rate (reboot v3 after changing).

Search SD files (SD Card overview):

• The displayed time is estimated from file length.
• If logged GPS data is available in the file, then GPS date and time (log-start time) shown in the summary window.
• Preferrably load the matching config before downloading SD-log directly (from a PC-connected) SD-card.
• If config/tables changed after the log was captured, the tables in the vemslog might be misleading. Eg. runtime VE_current differ from VE table, or runtime sparkadv differ from sparkadvance table. Note: runtime MAP, RPM and lambda, and almost all runtime values (except EGT, that depends on calibration in config) will be correct anyway.

Typically a 1GByte SD-card can store: ~360 hours of logging.

GPS log:

• GPS (NMEA) data can be logged to V3 internal SD Card (interleaved with other runtime data) if a GPS module is connected to the ECU (1st or 2nd) serial port.
• If connected to the main (1st) serial port ( ECU configuration port ) Enable "Automatic GPS Log on main serial port", and disable AIM.

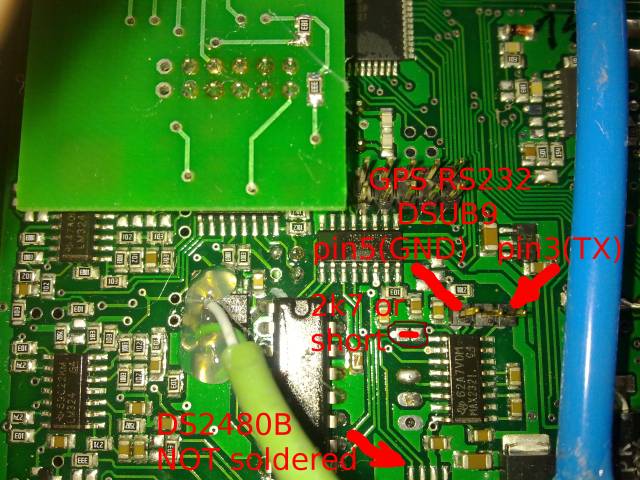

• If connected to 2nd serial port, Disable "Automatic GPS Log on main serial port. Incompatible with 1-wire/iButton (because 1-wire uses the 2nd serial port).
• To verify the GPS log settings see the config Overview Expression grid.

Testing the second serial input:

1. Upload a firmware with second serial port support (fw 1.1.89 or later)
2. Set up the GPS log to second serial:
   • ECU Logger enabled: SDCard
   • ECU Log use Byte stuffed format: Enable
   • Automatic GPS Log on main serial port: Disable
   • GPS Log Baud rate: 4800
3. Reboot the ECU
4. Erase the SD Card or check which is the latest file number
5. Start SD logging manually (Tools/SDcard/Start SD log)
6. Connect PC to second serial port
7. Start a Serial terminal program, open the correct port with 4800 Baud
8. Send the GPS saved log file
9. Search SD files, save the latest log
10. Open Vemslog, verify that GPS data is available (shift + 2: GPS gauge group) Search SD files, save the latest log
