V3 acceleration enrichment

Subpage of Tuning menu


Acceleration enrichment / retard
  • Type: The source sensor of acceleration.
  • Fadeout time: Time for enrich / retard after the acceleration.

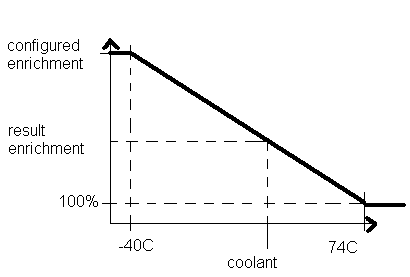

  • Acc Cold Multiplication Factor: Extra enrichment(multiplicative) at -40degree.

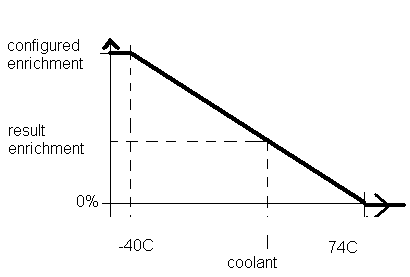

  • Cold Acceleration Added Amount: Extra enrichment(additive) at -40degree.
  • Max Ign Retard: Aceleration retard scalar.

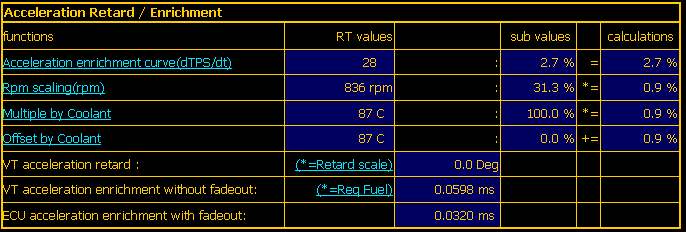

for more details see the Acceleration Retard / Enrichment Expression grid



details of the lines:

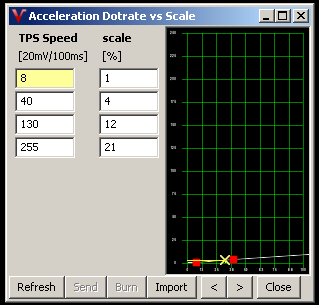

  • 1:result of the Acceleration enrichment curve

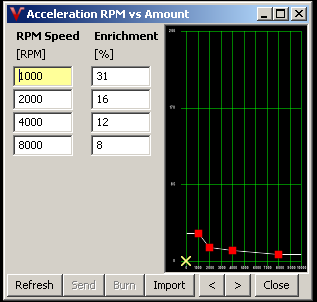

  • 2:result of the Rpm scaling curve

  • 3:result of the multiplicative Cold enrichment

  • 4:result of the additive Cold enrichment

  • 5:result of the calculated retard
    (maximum retard without time based fadeout)
  • 6:result of the calculated enrichment (maximum enrichment without time based fadeout)
  • 7:result of the enrichment from the ECU (actual enrichment with time based fadeout)
