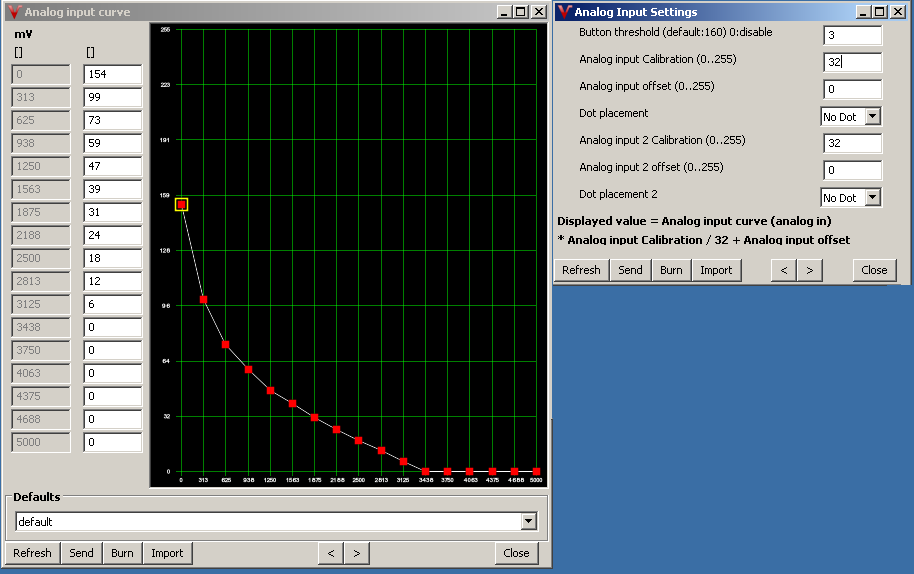

Analog input curve
This curve assigns calculation value to input voltage. Useful to make non-linear characteristic.
To make the default linear characteristic:
(use the LINEAR configlet)
analog input curve at 0 mV = 0
analog input curve at 312 mV = 15
analog input curve at 625 mV = 30
analog input curve at 938 mV = 45
analog input curve at 1250 mV = 60
analog input curve at 1563 mV = 75
analog input curve at 1875 mV = 90
analog input curve at 2188 mV = 105
analog input curve at 2500 mV = 120
analog input curve at 2813 mV = 135
analog input curve at 3125 mV = 150
analog input curve at 3438 mV = 165
analog input curve at 3750 mV = 180
analog input curve at 4063 mV = 195
analog input curve at 4375 mV = 210
analog input curve at 4688 mV = 225
analog input curve at 5000 mV = 240
