Subpage of Preferences menu

How to set up GPS

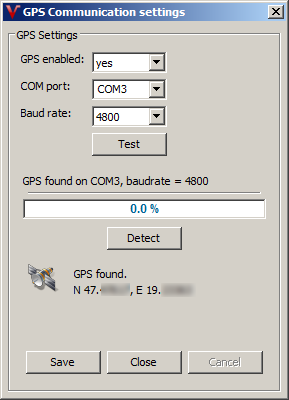

1. Open Preferences >> GPS Communication dialog
2. Enable GPS if it is disabled
3. Select COM port and baudrate (usually it is 4800) if you know the exact settings and press on Test button OR
4. click on Detect button to let VemsTune detect the port and baudrate (this may take a while)

If everything is fine, you should see your current position (like on this dialog)

5. Click on Save to save settings and close dialog, or Close to close window without saving

• In file VT_install_dir/config/include/section-gpsdata.ini around line 23 change
• gpsSpeed = { rawKnots / 10 * 1.852 }
• to
• gpsSpeed = { rawKnots / 10 }

• In file VT_install_dir/config/vemsTune-v3-1.2.23.ini around line 2230 change
• l_100km_temp = { roadSpeed ? (lphr * 100.0 / roadSpeed) : 255.0 }
• to
• l_100km_temp = { gpsSpeed ? (lphr / gpsSpeed ) : 255.0 }
