How to connect over Serial Bridge

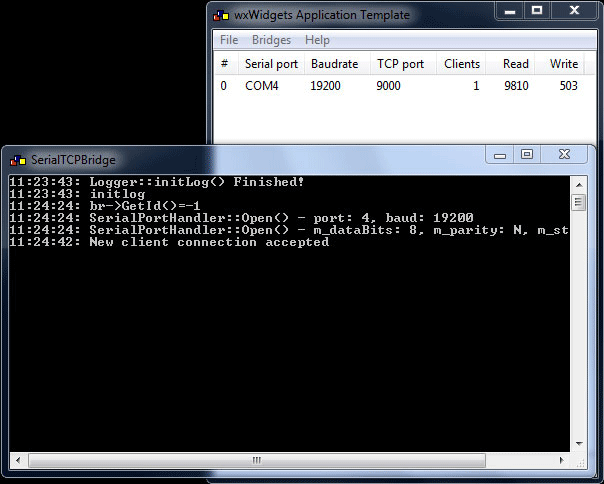

1. Download SerialTCPBridge from this link, install and launch.

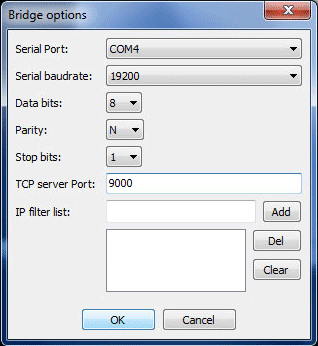

2. Bridges >> Add new Bridge

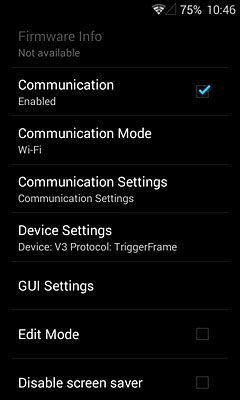

3. Open VemsDisplay on Android device, launch Settings


4. Enable Communication, choose Wi-Fi as Communication Mode

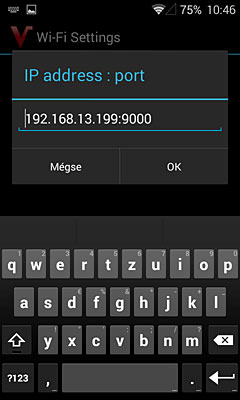

5. Communication settings >> Wi-Fi Settings >> Wi-Fi Settings add IP address : port
   IP address: run ipconfig to check
   port: TCP server port in Bridge options

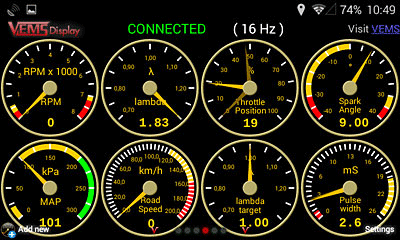

6. In a few seconds the Android device connects to ECU over SerialTCPBridge
