Overview

VemsTune has many functions to show values. Several gauge groups are built in and predefined, however they still allow customization. But you can also add and configure your own groups and gauges.

Note: you must open a vemslog, vemscfg or connect an ECU to able to show gauges or edit group properties.

There are many editors in the View menu to modify the groups: Editors in View menu

Also have many options in the group context menu. (Only in Edit mode!)

Background images

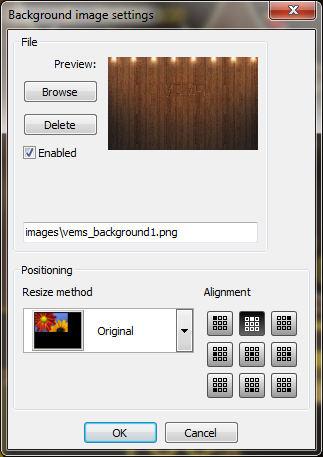

In this dialog you can set the background image for the groups.

Delete button: Delete the whole background settings.
Enabled: Enable/Disable the background image
