Expression grid
Subpage of Gauges
Expression Grid
This widget helps to understand and verify how the ECU calculates complex controller data (by model).

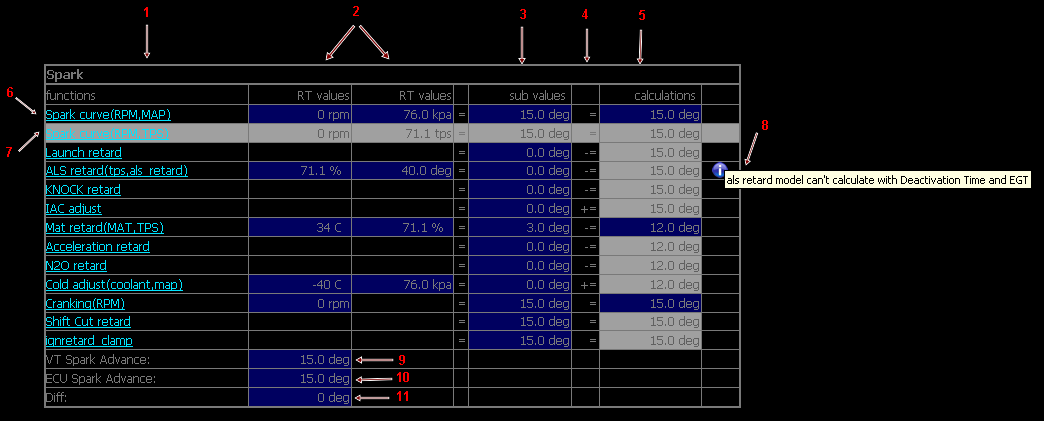

Components of the widget:
- 1: functions: name of functions which used while calculating
- 2: RT values: real-time result (sent by the ECU)
- 3: sub value: subresult of the function
- 4: operation: the way how the next result calculated (for example: sub value: 3, previous result: 15, operation is "-=", then next result will be 15 - 3 = 12)
- 5: calculations: result of the line
- 6: link: direct link to dialog
- 7: inactive line: some calculations work differently with different configurations, these lines are not used at this time.
- note: (link may show where to enable it)
- 8: Note: this icon means that some calculation can't be made by model, or there is some special note to this line. Click on it for more details.
- 9: Vt result: the final result of the calculation done by VemsTune
- 10: ECU result: the real-time data calculated by the ECU (not every time available, if modul is disabled or was not sent by RT)
- 11: Difference: difference between the results, it derives from calculation differences, and resolution differences
