Subaru Trigger

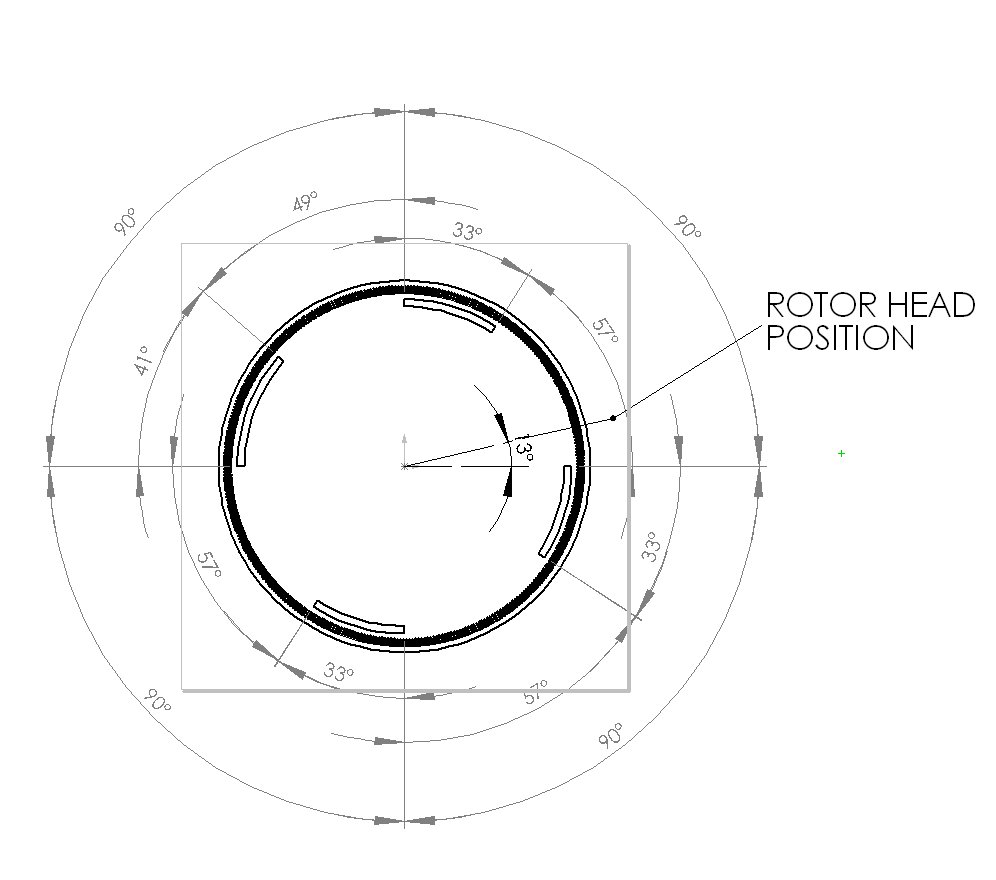

Older Subarus(L-Series) with ECU controlled ignition have Crank-position [Signal disc] in distributor.

360 little holes in outer ring presents Crank-angle in one degree/Percent precision (For engine speed signal.)

Four long holes, are crank angle signal. One of the holes is longer, indicating (possibly) Cyl 1. (Working on it!!)

See InputTrigger/SubaruTrigger

Hopefully i can use my distributor signals with genboard too!

Q: Any ideas how to make it work with genboar v3.0??

A: the 360-3 tooth crankwheel is definitely more than what current firmware can handle (and possibly above what is practical with the chosen inputcapture - but not HW-counting capable - IC1 channel). I suggest to help out in the InputTrigger/AudiTrigger

firmware, that board was designed for this.

Newer subarus (Legacy mark1) have triggers like these:

[Cam Sensor]

[Crank Sensor]
