This page is about turbocharged applications
Turbocharging an engine is one of the common reasons for using a tunable engine management system like GenBoard/VerThree.
GenBoard/VerThree can be control fuel, air and ignition on it's own, or it can act as a supplementary fuel controller that only adds fuel when boost comes (the tables can be set up for this very simply).
For ignition, GenBoard/VerThree is normally controls ignition fully on its own, or lets the factory ignition control ignition fully on its own.
Theoretically, with appropriate configuration and tables GenBoard/VerThree could use the ignition output of the factory computer as a trigger, and delay the ignition output according to the map, so ignition is retarded more when boost comes in; however this is not recommended (there is a minimum delay from input to output; and it's better to do the mapping in one well defined table than in two separate boxes).
Fortunately there are huge amounts of info on the web about turbocharging:
http://www.thezcresource.com/html/jnkyrdturbo.html
http://www.grapeaperacing.com/GrapeApeRacing/tech/turboplacement.cfm
http://www.sportmachines.com/maintenance/header1.php
http://www.beesandgoats.com/boostfaq/g2icturbo.html
Most questions can be looked up or answered here:
For those DIY Turbo guys you can check this group out:
http://autos.groups.yahoo.com/group/jyturbo/

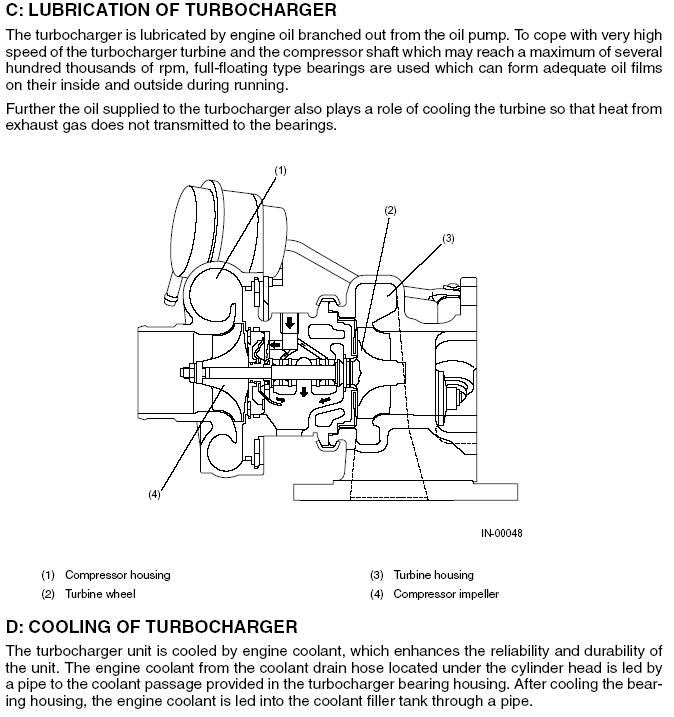

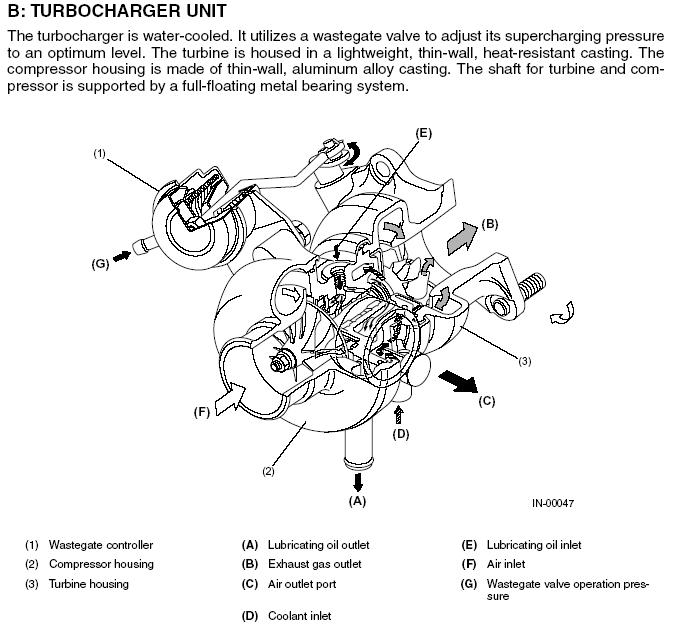

Some pictures about how the oil and watercooling working in the turbochargers. Oil and water inlets, outlets etc..
