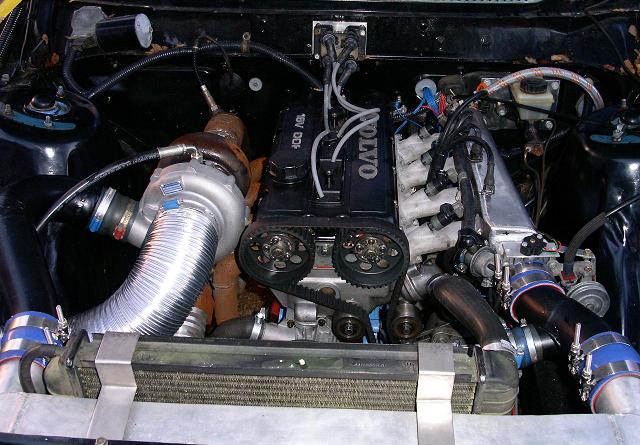

Volvo 244 -82
4 cyl, 16v, B234 block filled and O-ringed, forged pistons from ford probe 2.3L, forged H-profile rods, A cheap Super T70 turbo with Semi ballbearings, 60.5mm compressor inlet, 0.84 exhaust,
WB lamda, GM 3bar map sensor, 4*1200cc injectors, 44mm wastgate, own manifold, own exhaust manifold, lage truck intercooler and
VEMS v3.1 board with serial number: 1st bord: 87 (2nd 99)
BMW 535 (getrag 260) gearbox converted to fit volvo.
Page TODO
Keep a clean page!
Current working on
get it running...
Valued tip
Back to tabletests: apply lightbulbs or LEDs on outputs, and see OnlineCourse/OffEngineTesting mst63 msp01 (or up to msp7E for lowest RPM) can be used to generate stimulator-output on (stolen) config.act_wot_channel output that can be fed back to self (primary trigger) or to another board - with a series cap if LM1815 is used.
Trigger wheel
Bosch VR sensor (jetronic), 36-1, mounted at crank.
Trigger wheel is a castiron, 36-1 with a teethwide of 4mm->4.5deg and 5mm~>5.5deg jumps, missing tooth 14mm~>15.5deg
Fuel setup
| cyl | inj | EC36pin # | h[0] # |
| 1 | A | 7 | 01 |
| 2 | F | 18 | 20 |
| 3 | G | 6 | 40 |
| 4 | H | 17 | 80 |
h[0]=80 40 20 01 00 00 00 00
h[1]=00 00 00 00 00 00 00 00
Ignition setup
2 ign banks, firering a Ford dual coil with 4 outputs (Wastefire)
| cyl | Driver | EC36pin # | h[2] # |
| 1+4 | 06 | 24 | 06 |
| 2+3 | 05 | 12 | 05 |
h[2]=06 05 06 05 00 00 00 00
Updated 2005-08-01
My tables
http://www.vems.hu/files/RobinJohansson/tables.txt
My config
http://www.vems.hu/files/RobinJohansson/config.txt

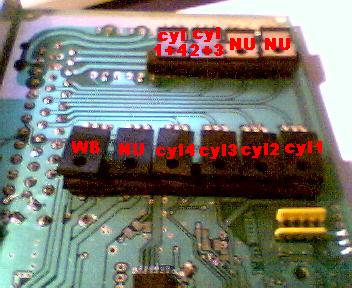

My V3.1 board:
