The primary trigger was tested with 83mV(RMS) trigger signal.
As the trigger sensor suspicious we change the pullup resistor from 18kOhm to 33kOhm (27kOhm is standard from 2013 December)
To measure
- Signal DC level (DVM, mV)
- Signal AC amplitude (DVM or oscilloscope)
- Signal pattern (triggerlog)
- VR Sensor resistance (DVM, Ohm)

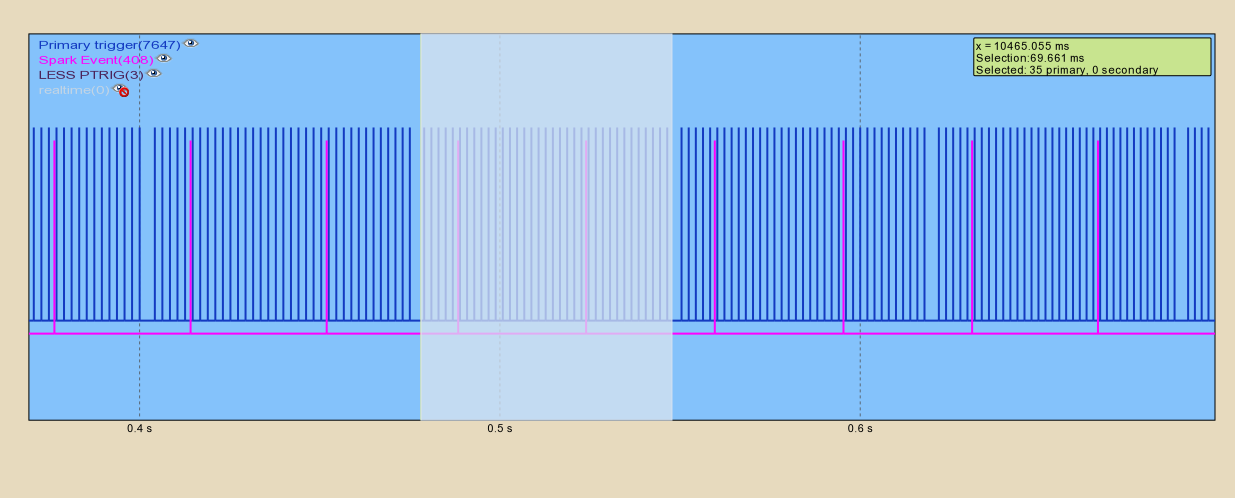

The following logs created with 83mV test signal.
triggerlog and other files (uploaded from FileArea):
