Electronic throttle body
- All needed info. Vw throttle
http://www.vems.hu/files/MembersPage/PeterJensen/electronic_throttle_control.pdf
- Throttle driver FET/IC TLE 6209R 7A H-Bridge for DC-Motor
http://www.st.com/stonline/products/promlit/pdf/flhbridge0806.pdf
- Throttle/EGR driver stonline products
http://www.roboteq.com/ax1500-folder.html
- Cost Optimized, 2 x 30A Brushed DC Motor Controller
http://www.mcmanis.com/chuck/Robotics/tutorial/h-bridge/bjt-use.html
- Layout Considerations
http://www.mathworks.com/company/newsletters/digest/jan02/throttle.html
http://med.ee.nd.edu/MED10/pdf/459.pdf#search=%22electronic%20throttle%20body%22
http://www.delphi.com/pdf/techpapers/2006-01-0763.pdf#search=%22electronic%20throttle%20body%22
http://www.visteon.com/utils/whitepapers/2004_01_0524.pdf#search=%22electronic%20throttle%20body%22
http://esl.mit.edu/tasm/ESL-TIK-00204.pdf#search=%22electronic%20throttle%20body%22
http://www.vems.hu/wiki/index.php?page=MembersPage%2FPetrPodrazsky
http://www.picotech.com/auto/applications/electronic_throttle_control.html // HansK
http://www.vems.hu/files/MembersPage/PeterJensen/gaspjeld.pdf
- Some canbus protocol data http://www.hex.co.za/vaginfo/index.html
- add can data.maby not the correct place... http://www.vems.hu/files/MembersPage/PeterJensen/can_eng.pdf
- Wary useful reading haw to control a engine http://www.vems.hu/files/MembersPage/PeterJensen/eobd_eng.pdf
Inputs - note there is a second signal to detect errors

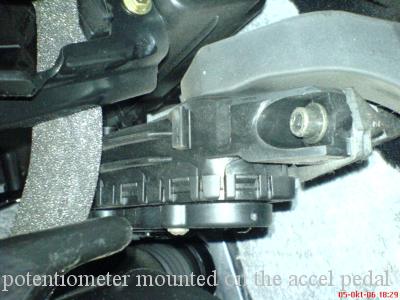

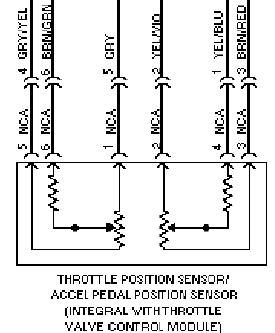

- 2 PPS (Pedal position sensor) potentiometer mounted on the accel pedal:

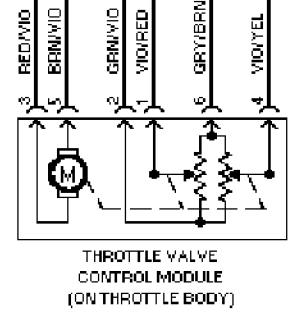

- 2 TPS throttle position sensor : potentiometer mounted on the throttle body
Most likely 5V signals.
Output to drive actuator
- a variable output 0.. 12V
- or 0..+12V and 0..-12V ? (bidirectional push-pull style? might be possible with stepper outputs, except current rating....) Can someone confirm this? 10A full-bridge driver needed. or 3A but with automatic (HW) current-sense/limit/switchoff.
- VEMS default HW does not have 10A bidirectional outputs. H-bridge driver needed
- or 0..+12V and 0..-12V ? (bidirectional push-pull style? might be possible with stepper outputs, except current rating....) Can someone confirm this? 10A full-bridge driver needed. or 3A but with automatic (HW) current-sense/limit/switchoff.
- DC motor Driver: [TLE 7209-2R]
- DC motor Driver: [ TLE 6209-R]
- [digikey.com h-bridge] has plenty suitable H-bridges for $4..5, eg:
- NJM2670D2 DIP22
The software/firmware to drive this is not too complex, but we experienced some lag during last months even for simple firmware tasks.
What is the current-draw ?
- Normal load: 2,5A
- Stall load 9,5A
- See the above documentation
- See all the schematic/diagram vw passat at: http://www.vems.hu/files/MembersPage/PeterJensen/el%20diagram%20alt%202000.pdf
4/10-06
- I got a new car VW Passat 1999 and would like to VEMS it but can we control the electronic throttle ?
- most likely not. Any useful info about the throttle ?
- will it be possible in the near future ?
- if you get (find/sniff/query from manufacturer) the CAN-codes (assuming it's CAN-controlled), than maybe. Otherwise not
- Or are there another way to do it ?
- mechanical linkage (clumsy ;-)
The connector is : [LSU4.9 WBO2 connector] (1J0973713)
