Order Number: 17873
Engine F136
Displacement: 4308
Power: 490 hp at 8500
Flat plane V8, 32 valve quad camshaft actuators
Primary trigger 60-2 VR
Second to fifth trigger VR (650 ohm)
Camshaft actuator coil resistance 41 ohm
8 Stock COP with positive trigger
Vems configuration:
4 igbt + 4 logic
Dual WBO
Dual EGT
Primary trigger: VR
Secondary trigger: VR
Third trigger: Hall
Fourth trigger: Hall
Fifth trigger: Hall (will use vr hall converter)
What are the recomended settings for sectrig?
to recomend something for secondary trigger you need to have it in the log. reasons why you dont have it here maybe it's not enabled in sec trig configuration or maybe not connected at all?
Valdas

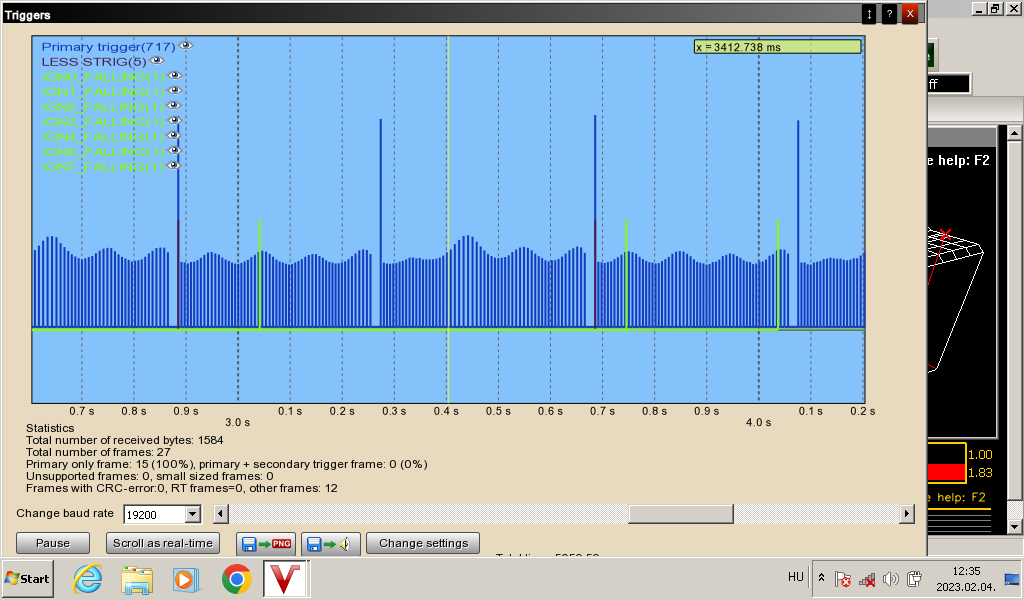

Cam-sync is enabled, it is connected, edge is set to Rising for VR sensor. Everything else is disabled. There is a secondary trigger in the log, maybe it is hard to se but it is on every second revolution after the gap, right on the primary trigger pulse.
well there isn't one, ecu is actually reporting that you are missing secondary trigger, it's not there for sure.
valdas
