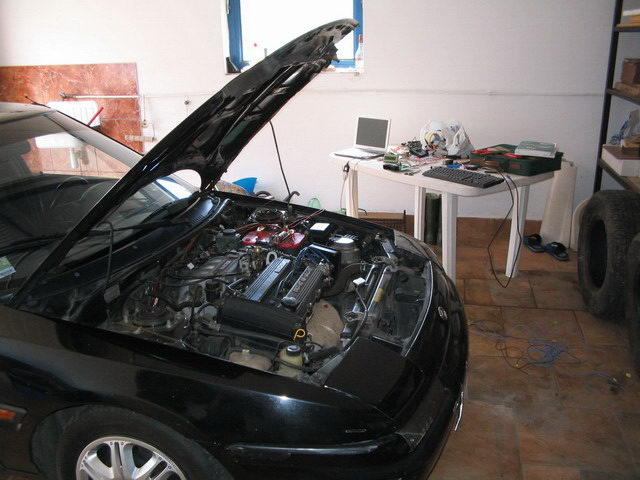

Starting of the work

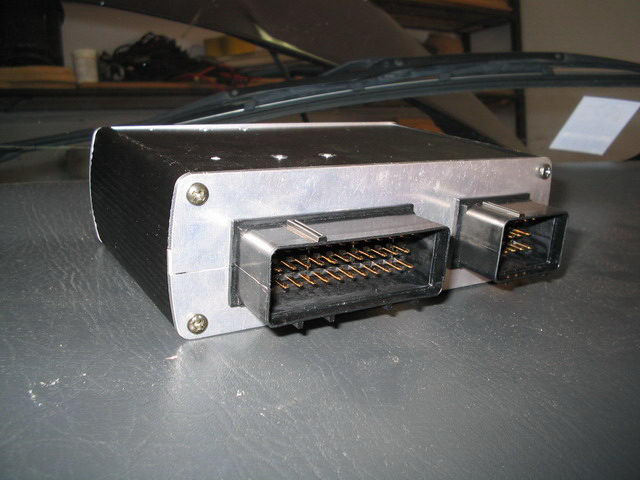

AVR in the box

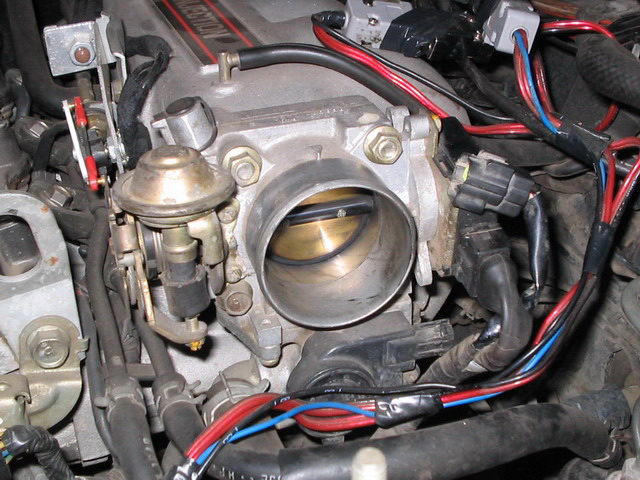

The throttle body, and the PWM-ing ISC valve under of that

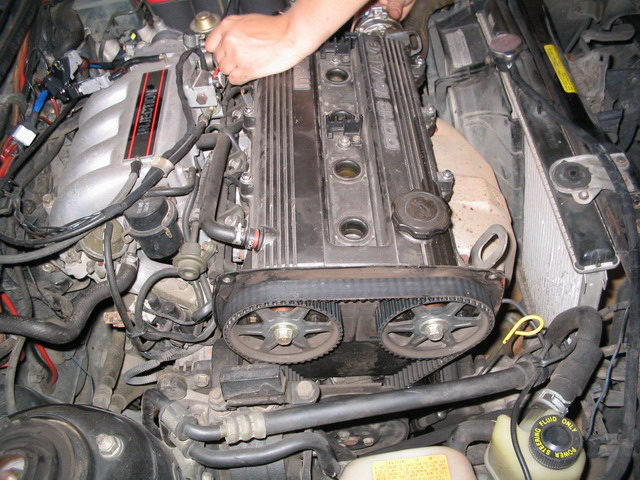

I'm looking for the TDC of the first cylinder.It's signed on the CAM gears.

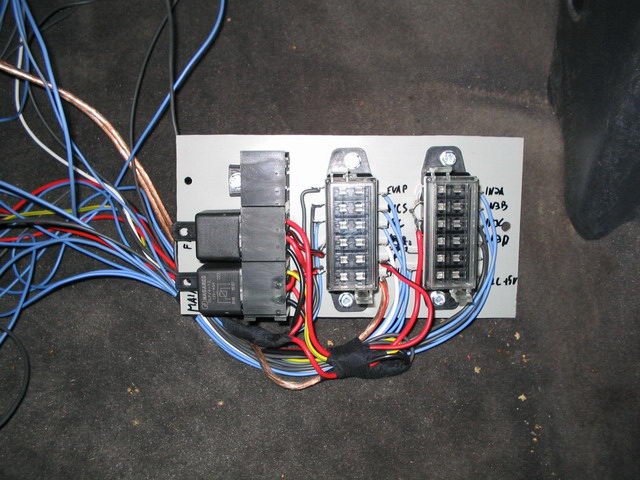

My home made relay and fuse board.I like it:)

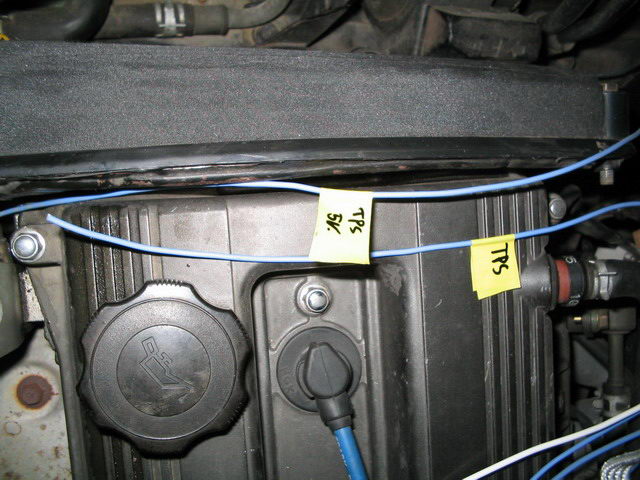

The signs are written on every wire.It's important!

AVR and fuse board in the car.

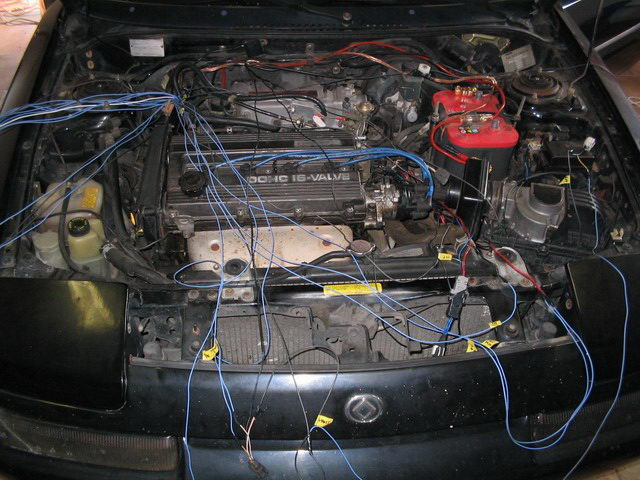

I tried to start the engine first, with this chaotic wiring "scheme".It's started:))

The injectors are wired.

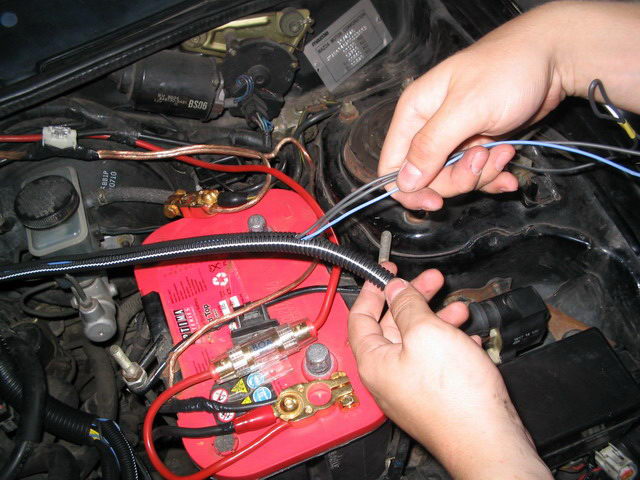

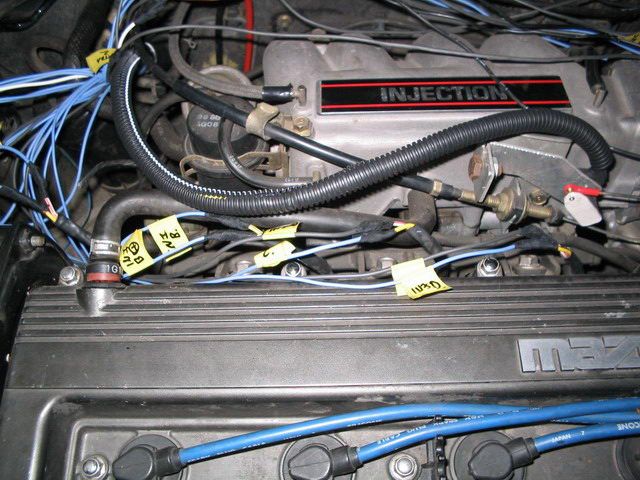

I started the hide all the wires into theese hoses.

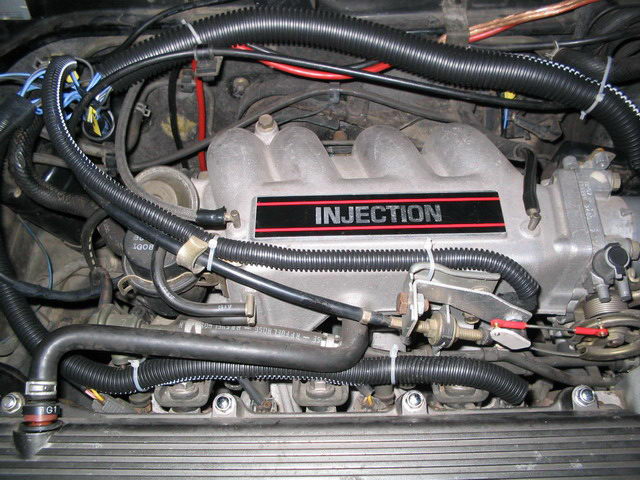

It looks fine:)

This is how the firewall looking from inside the car.The wires come through the firewall there.

AVR backside.

AVR frontside.

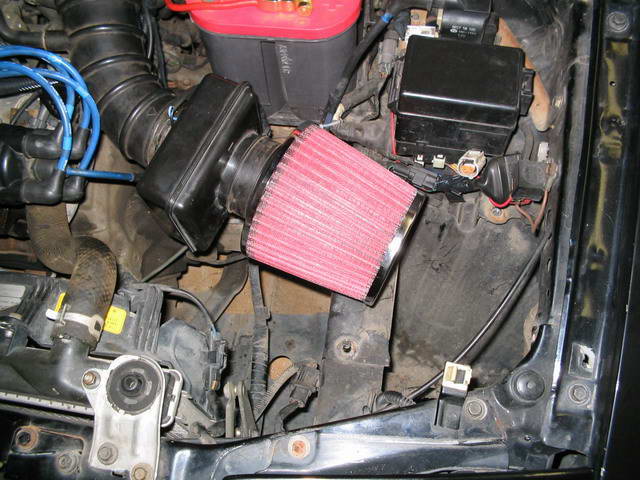

I could remove the stock VAF meter.And i built up a direct air filter too.
