GenBoard/VerTwo/CircuitDiagrams

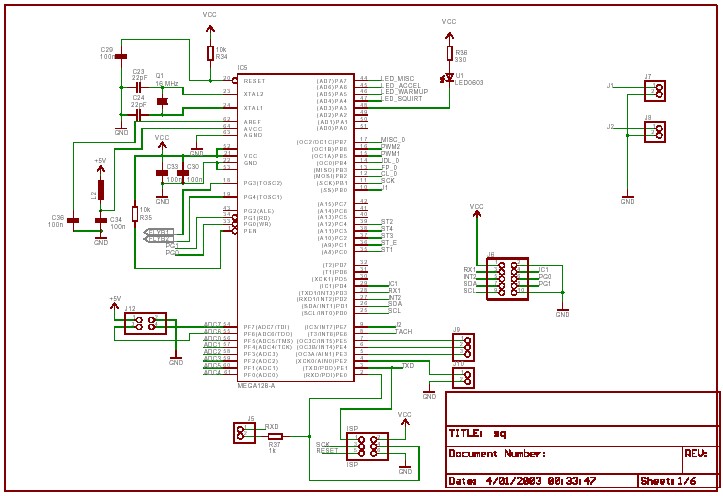

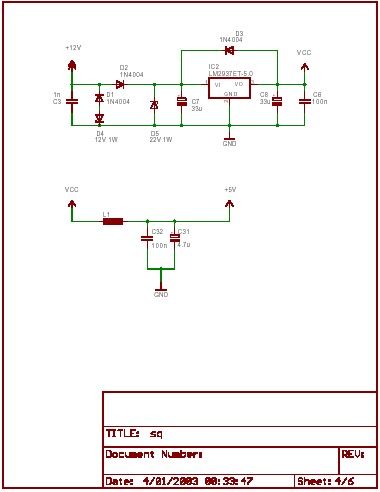

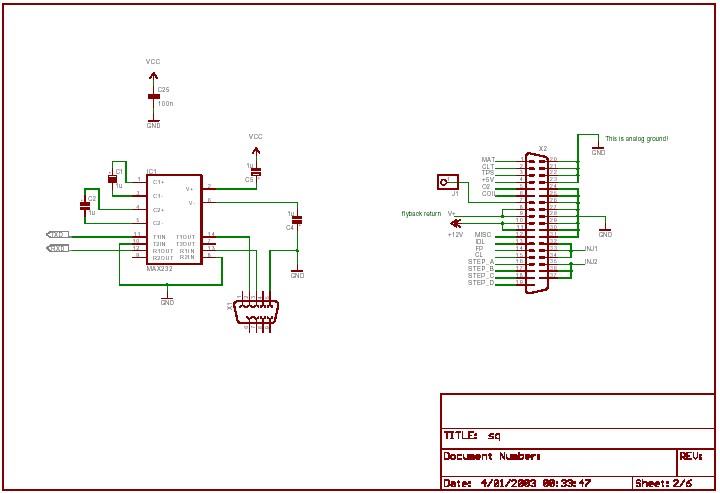

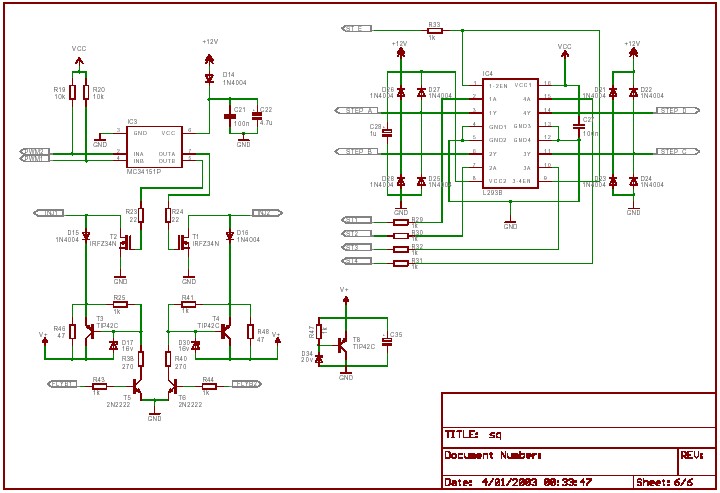

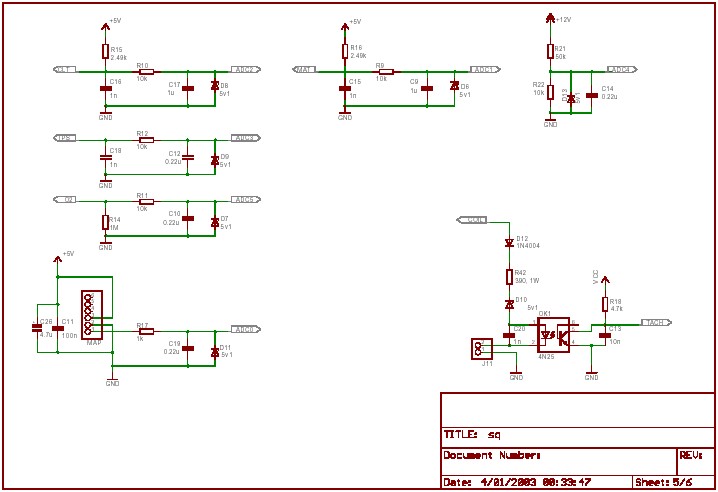

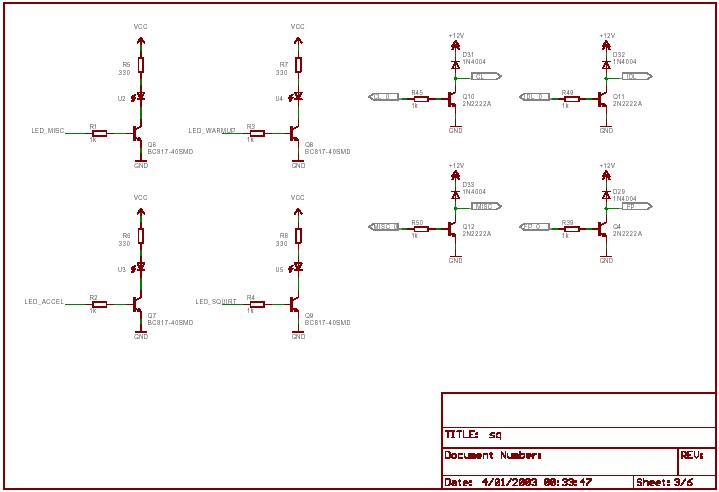

Circuit Diagrams for the GenBoard v2.2

Click [here] for the PDF version from MembersPage/MichaelKristensen.
