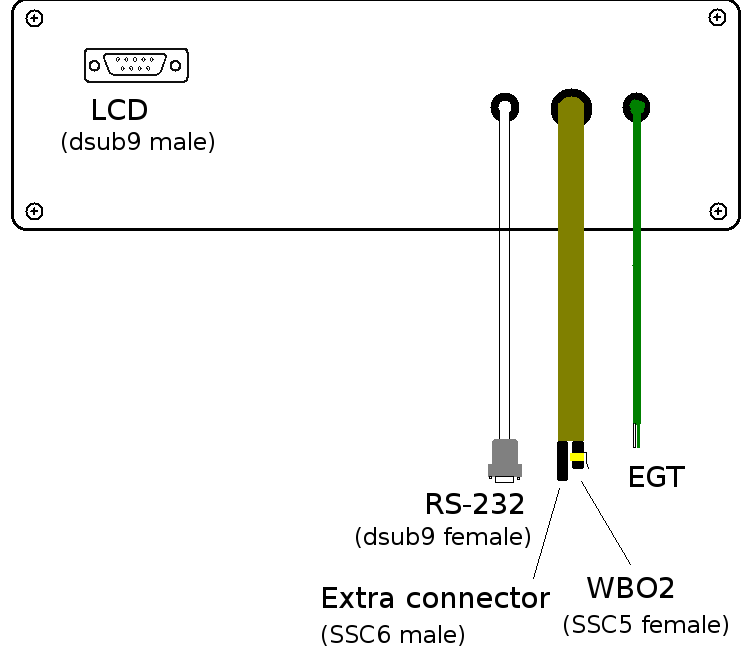

VEMS AAN Audi ECU based on VEMS v3
WBO2 (SSC5 female)
Extra connector (SSC6 male)

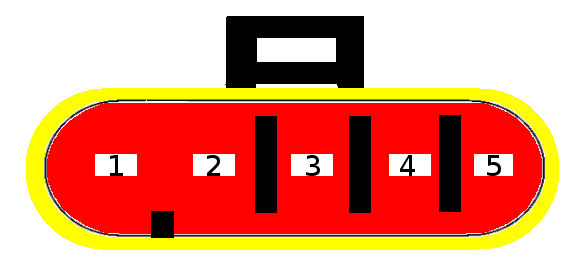

WBO2 connector pinuot
|
SSC5 |
WBO2 |
Name |
Recomended colour |
|
1 |
1 |
nernst |
Black |
|
2 |
3 |
supply+12V |
Thick red ! |
|
3 |
4 |
heater(-) |
Thick brown |
|
4 |
5 |
pump(-) |
blue |
|
5 |
6 |
pump(+) |
Thin red |

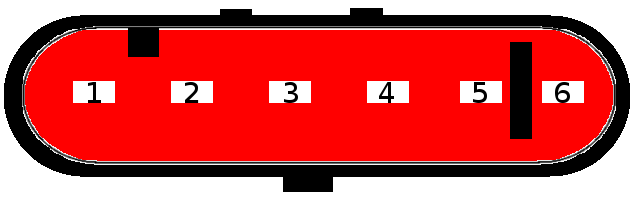

AAN Extra connector pinout, WARNING can be different on custom orders.
|
SSC6 |
Description |
|
1 |
P259 CH1 logic level output |
|
2* |
MCP3208 CH2 (pullup + protection) 0-5V |
|
3* |
MCP3208 CH5 (pullup + protection) 0-5V |
|
4 |
IGN out 02 (for high current) |
|
5 |
IGN out 03 (for high current) |
|
6 |
GND |
* Connect voltage out of 0-5V, seriously damage the unit. Be careful.
