GPS

How to set up GPS logging in V3GUI.

Important note: GPS Data only available when ECU is detected by vemsTune.

If you take a log (that also contains GPS data) of a timed 402m quatermile run, please publish for analysis and verification (60 feet time is also important! mention your GPS type).

  1. Set appropriate comm port for GPS and ECU: Go to Settings/Serial Port Config [Screenshot: Serial Port Settings]
  2. Check GPS state:
    1. tbGPS-offline.png GPS Offline: The application released the comm port and not tring to connect.
    2. tbGPS-false.png GPS not found: Could not open the device.
    3. tbGPS-warning.png GPS warning: Comm port Successfuly opened but no data received.
    4. tbGPS-true.png GPS Ok: Comm port Successfuly opened and valid NMEA data received.
  3. Check ECU state:
    1. tbDeviceNone_48.png Offilne:
    2. tbDeviceNoneRed_48.png ECU Not detected (but continously trying)
    3. tbDeviceV3_48.png V3 Detected:
  4. Start logging: If GPS and V3 ECU has been detected successfuly to start logging press tbIsLogging-false.png icon in toolbar. The icon should change to tbIsLogging-true.png The log file created on the logs/ folder. The name of the log file is autogenerated ( format: V3-log-YYYY.MM.DD-hh.mm.ss.vemslog example: V3-log-2008.01.29-11.29.55.vemslog)

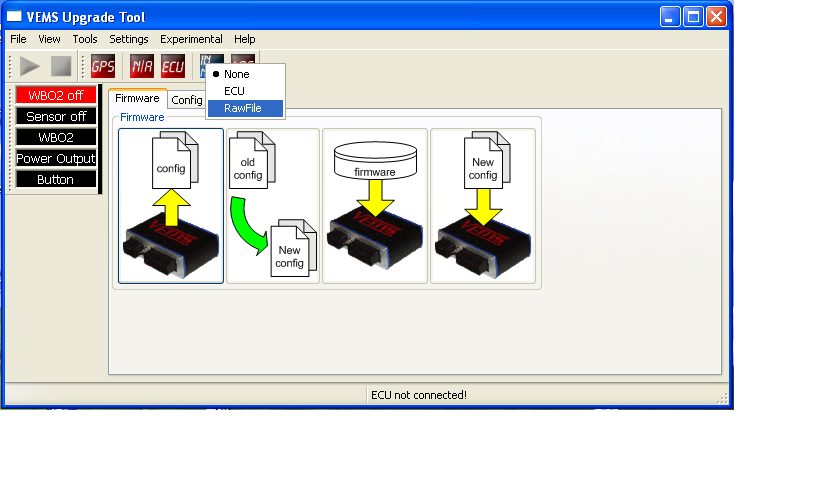

  5. Playback of raw log: To playback rawlog select [Screenshot: Select raw log]

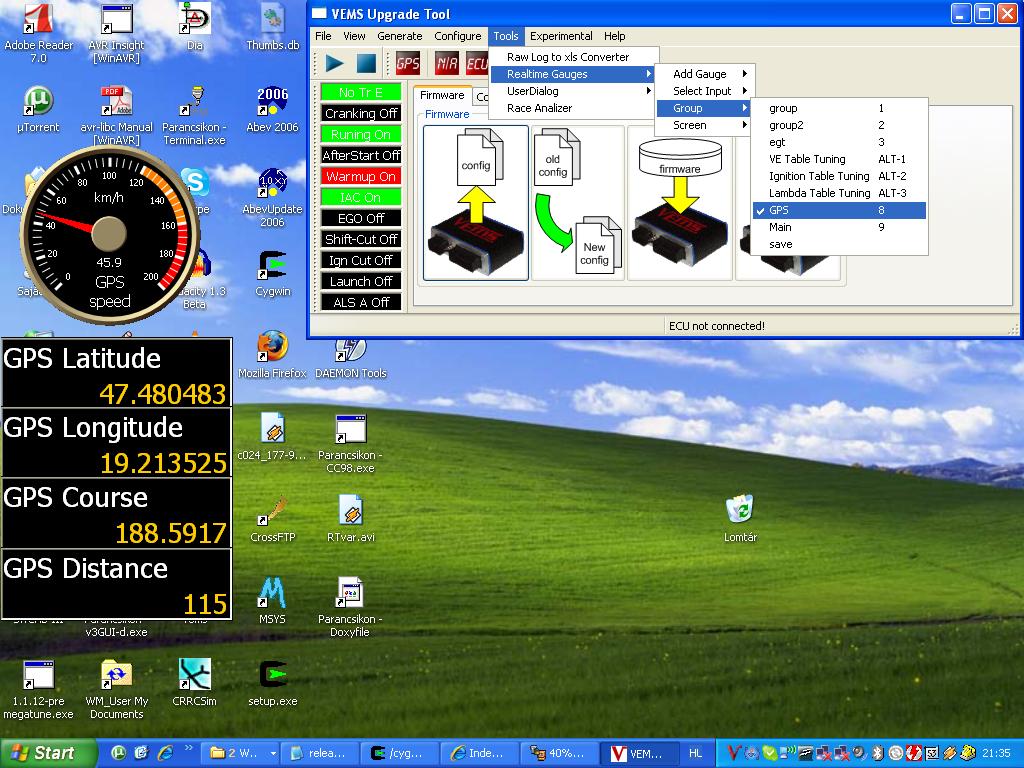

    1. Put some widgets to the screen "press 8 hotkey" or go to Tools/Realtime Values/Group menu an select one [Screenshot: GPS play back]
  6. Convert raw log to csv file:

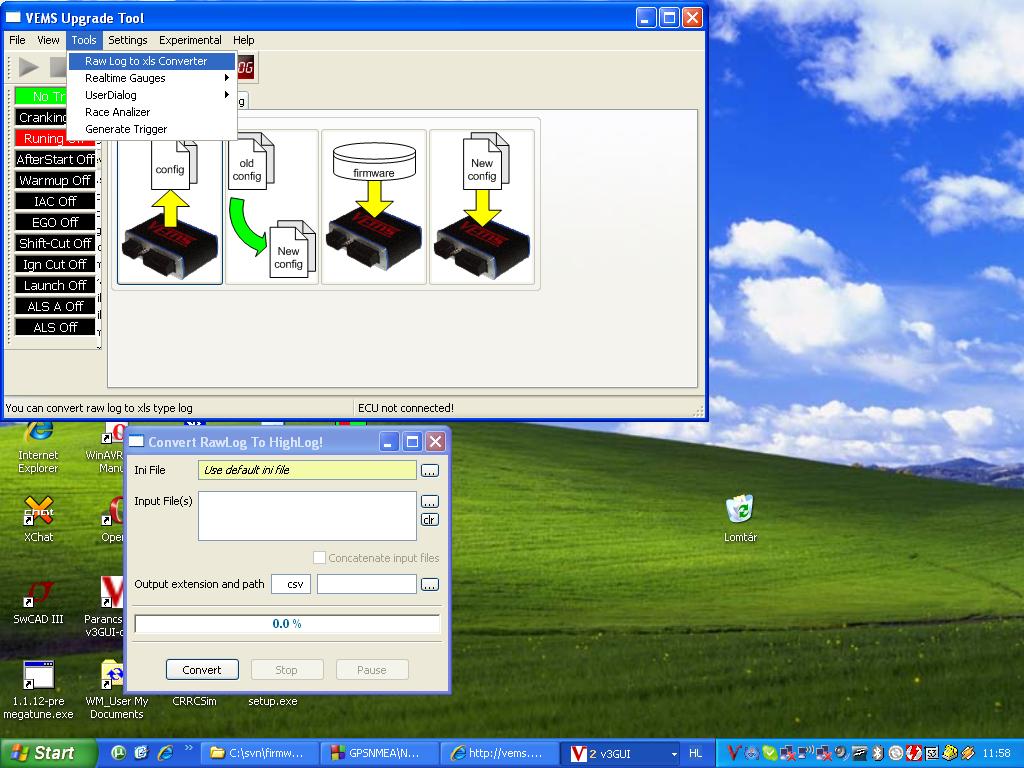

    1. Go to Tools/Raw Log to XLS convert menu: [Screenshot: Raw Log to XLS convert menu]

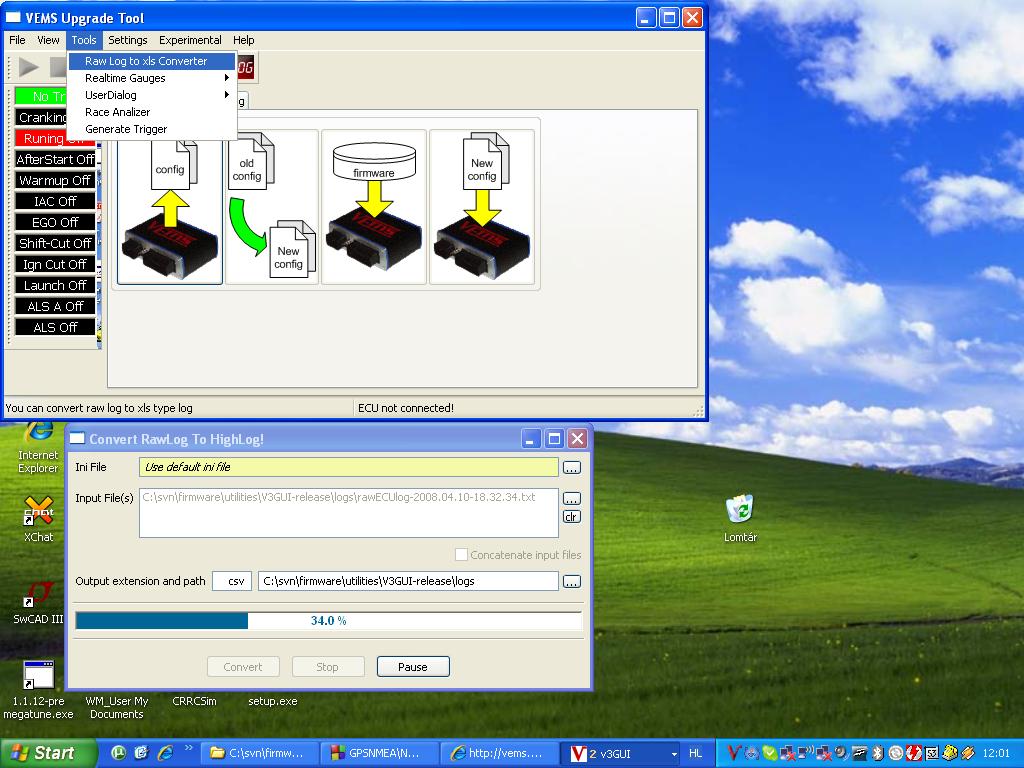

    2. Select raw log fileS (yes, you can select multiple files to convert) and press convert button. [Screenshot: Raw Log to XLS convert menu2]
Inportant to know that the GPS data can be seen only if ECU is successfuly detected!

The output csv contains the GPS data (GPS data arrived just when the GPS data position column: -2,-1,0,1,2,... shows 0. Expect it 0.3 msec +- 0.1sec old at that time). From this the

can be determined. The timestamp of the 0m is not precise enough. The RPM-drop might help. But the 60 feet => 402m timestamps (from interpolation) and their difference is most characteristic anyway. More precise and reproducible than it can be measured by most other means.

Accelerating to high speed is very dangerous so be careful and responsible. Check the regulations that apply.

GPS device

Both our GPS uses NMEA protocol (only baudrate is different). But other than NMEA format can be implemented, if it can be converted to a struct that contains geographical data and speed. (best to take a few lines of examples in TerminalProgram and test on PC).

For the PC, we use a UFO like GPS that has RS232. It takes +5V power from a PS2 connector.

The fujitsu siemens pocketloox n520 PDA has internal GPS.
